Community Module¶

Overview¶

Community Health Work¶

Access to a health provider is something that is commonly taken for granted. From a kenyan perspective, the doctor to patient ratio is approximately 2:10000, implying that there are chances you may not get to see one in your lifetime!.

Community Health workers come in to change that.

A community health worker is trained to provide the most essential life saving interventions such as emergency care. They also equip families with knowledge and skills to prevent diseases. They Promote sanitation, hygiene, and good nutrition.

The Module¶

The community module is primarily meant for recording household visits/episodes that are done by Community Health Workers. To achieve this, the following distinct activities are defined:

Module Architecture¶

Class Diagram

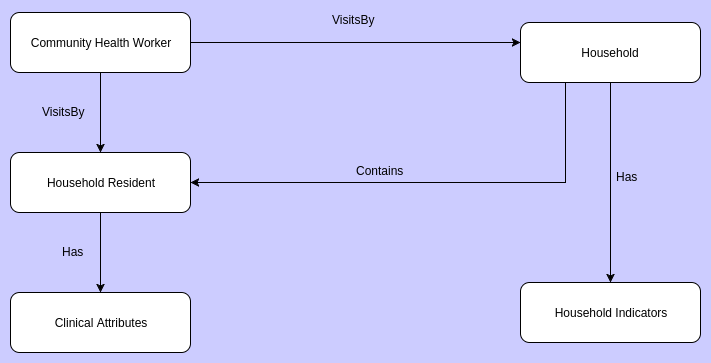

Below is a simplified class diagram of the module workflow:

Registration

Once a Community Health Worker visits a house, household registration takes place first since residents must be assigned to a house as they are registered. During house registration, a house number is provided, so as to uniquely identify the house. The location of the house is also specified such as the community unity, village, ward, constituency, and the county from which the house exists. The household residents are added, starting with the head of the family.

Below is a class diagram that elaborates this process:

Visit

Once a household and its residents exist in the system, a visit is done. A visit can be done either by a person or by a household. A visit by a person details are stored in a different table from a visit by a household since both processes are unique. The diagram below explains further the processes:

Household registration¶

A household refers to a house and its occupants. Unique households are defined during a household mapping activity. These details are captured into the com_household table and implemented through HouseholdController in StoneHMIS com_household table.

The com_household table contains :

Column	Type	Null	Default
com_household_id	int(11)	No
household_number	varchar(255)	No
com_unit_id	bigint(20)	No
com_user_id	bigint(20)	No
county_of_household	varchar(50)	No
constituency_of_household	varchar(50)	Yes	Null
ward_of_household	varchar(255)	No
village_of_household	varchar(255)	No
household_latitude	bigint(10,6)	Yes	Null
household_longitude	bigint(10,6)	Yes	Null
date_registered	int(20)	Yes	Null
registering_user_id	int(20)	Yes	Null
registering_user_id	int(20)	Yes	Null

Household Residents Registration¶

These are the occupants of the house. A house must have residents for community health work to be done. To avoid running parallel systems, I.e community module running parallel to stoneHMIS, household residents are registered during the normal registration in stone,(in the registry module). However, the household residents details go into a different table called com_household_residence, which is linked to the reg_person table through reg_person_id.

Note

The residents are registered starting with the head of the household, so that the subsequent occupants are assigned that head.
A household cannot have more than one head.
A head can lead more than one household.
A person can belong to more than one household.
A worker will have a relationship of ‘other related person’ to the head.
An adopted child will have a relationship of ‘adopted child’ or ‘adopted daughter’ or ‘adopted son’ to the head.
An Orphan cannot exceed 18 years!
A head cannot exceed 80 years!

The com_household_residence table contains :

Column	Type	Null	Default
com_household_residence_id	bigint(20)	No
reg_person_id	bigint(20)	No
household_number	bigint(20)	No
date_registered	date	No
is_household_head	int(20)	No
date_created	timestamp	Yes	Null
reg_episode_id	bigint(20)	No
person_code	bigint(20)	No
altering_user_id	int(20)	Yes	Null
registering_user_id	int(20)	Yes	Null

Indexes

Keyname	Type	Unique	Packed	Column	Cardinality	Collation	Null	Comment
PRIMARY	BTREE	Yes	No	com_household_residence_id	4	A	No
